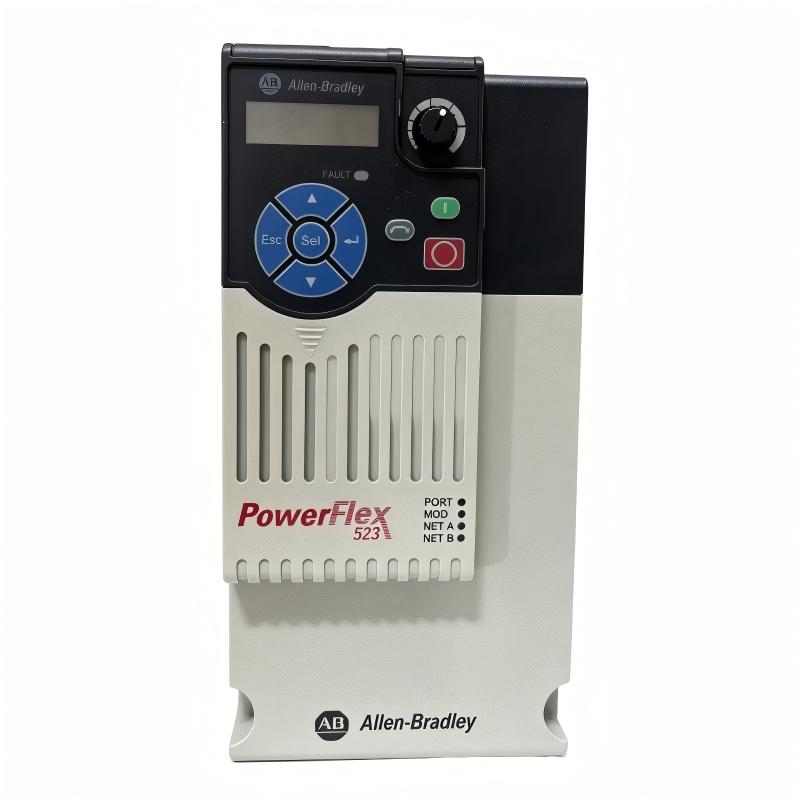

Allen-Bradley 25A-D017N114 PowerFlex 523 AC Drive faults are commonly related to motor overload, incorrect acceleration settings, unstable power supply, parameter mismatch, or mechanical load changes rather than immediate drive hardware failure.

When troubleshooting a PowerFlex 523 system, engineers should analyze the complete electrical and mechanical system instead of replacing the drive immediately.

Allen-Bradley 25A-D017N114 PowerFlex 523 Fault Symptoms

Typical fault symptoms include:

• Drive trips during startup
• Motor cannot reach target speed
• Overcurrent alarm appears
• Unexpected shutdown occurs
• Reset operation is frequently required

Field case:

A production conveyor equipped with a PowerFlex 523 drive started showing random shutdowns during peak production periods.

Initial observation:

• PLC output signal: Normal
• Drive display: Ready
• Motor startup: Failed

The maintenance team suspected:

• Drive power module damage
• Motor failure
• PLC communication problem

The troubleshooting process started from the complete system.

Allen-Bradley 25A-D017N114 Fault Diagnosis Process and Signal Analysis

The engineering inspection followed the control chain:

PLC Command
     |
     |
PowerFlex 523 Drive
     |
     |
Motor
     |
     |
Mechanical Load

Inspection points:

• Drive fault history
• Input voltage stability
• Motor current
• Mechanical resistance

Measured data:

Before repair:

• Supply voltage: 460 VAC
• Control signal: Normal
• Motor current during startup: Higher than rated value
• Fault timing: During acceleration

The investigation showed that the fault happened only when the motor required high starting torque.

Allen-Bradley 25A-D017N114 Overcurrent Fault Investigation

Engineers reviewed:

• Motor nameplate data
• Acceleration settings
• Load condition

Field measurements:

• Motor current exceeded normal startup range
• Acceleration time was too short
• Conveyor load had increased after production changes

The drive protection system reacted correctly.

The PowerFlex 523 was protecting the motor from excessive current.

Allen-Bradley 25A-D017N114 Root Cause Analysis and Recovery

The final cause was an incorrect acceleration configuration after machine modification.

Original condition:

• Conveyor operated with lighter products
• Existing parameters were acceptable

New condition:

• Production capacity increased
• Mechanical load became heavier

Failure pattern:

Normal operation:

• Motor accelerated successfully

Fault condition:

• Higher torque requirement
• Current increased rapidly
• Drive protection activated

Engineering conclusion:

The problem was caused by application changes and parameter mismatch.

Allen-Bradley 25A-D017N114 Troubleshooting Repair and System Recovery

Corrective actions:

Drive Parameter Adjustment

Engineers performed:

• Increased acceleration time
• Verified motor current setting
• Checked frequency limits

Mechanical Inspection

Verified:

• Conveyor movement
• Bearing condition
• Load resistance

Final results:

Before repair:

• Multiple startup failures
• Production interruptions

After repair:

• Stable motor acceleration
• No repeated overcurrent faults
• Normal production restored

Allen-Bradley 25A-D017N114 Common Fault Patterns and Diagnostic Methods

Overcurrent Fault

Symptoms:

• Drive trips during startup
• Motor current rises quickly

Diagnosis:

• Check acceleration settings
• Measure motor current
• Inspect mechanical load

Overvoltage Fault

Symptoms:

• Drive stops during deceleration
• DC bus voltage increases

Diagnosis:

• Review deceleration time
• Check load inertia
• Inspect braking requirements

Communication Fault

Symptoms:

• PLC cannot control drive
• Command response disappears

Diagnosis:

• Check communication wiring
• Verify network settings
• Confirm control source

Allen-Bradley 25A-D017N114 Long-Term Maintenance Strategy

For reliable operation:

• Save drive parameters
• Record fault history
• Monitor motor current
• Check electrical connections
• Maintain proper ventilation

A practical engineering rule:

“When troubleshooting an Allen-Bradley 25A-D017N114 PowerFlex 523 AC Drive, verify motor condition, application requirements, and configuration parameters before replacing hardware.”

Recommended troubleshooting sequence:

Drive diagnostics → Motor inspection → Parameter verification → Wiring check → Mechanical analysis → Final commissioning test.
