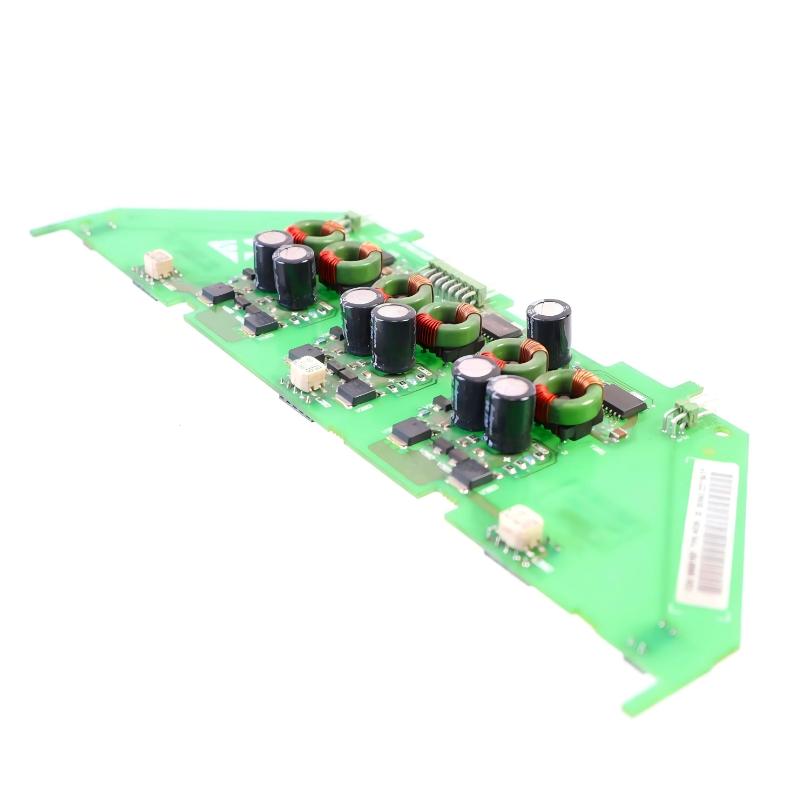

ABB NGDR-03 58908193F gate drive card faults are commonly caused by missing gate signals, feedback circuit problems, connector issues, power supply abnormalities, or interaction problems with the power module rather than immediate board failure. In industrial drive troubleshooting, engineers should analyze the complete switching control path before replacing the gate drive card.

This article describes a field case where an ABB drive stopped producing motor output after a maintenance shutdown.

ABB NGDR-03 58908193F Gate Drive Card Fault Symptoms

Typical fault symptoms include:

• Drive powers on but motor does not run
• Power stage fault appears
• Overcurrent protection activates immediately
• Gate fault alarm occurs
• Motor output voltage is missing

Field case:

A production machine stopped after scheduled maintenance.

Initial observations:

• Drive control panel worked normally
• PLC communication was normal
• Motor could not accelerate

The maintenance team suspected:

• IGBT power module failure
• Gate drive card damage
• Control board malfunction

Engineers began troubleshooting from the switching control chain.

ABB NGDR-03 58908193F Fault Diagnosis Process and Signal Analysis

Troubleshooting path:

Control Board
       |
       |
NGDR-03 Gate Drive Card
       |
       |
Power Semiconductor Module
       |
       |
Motor Output

Engineers checked:

• Drive fault records
• Gate command signals
• Feedback status
• Auxiliary voltage

Diagnostic results:

• Control command: Normal
• Auxiliary voltage: Normal
• Gate feedback: Abnormal

The fault location was narrowed to the gate control section.

ABB NGDR-03 58908193F Gate Signal Failure Investigation

Field measurements:

Before repair:

• Control voltage: Normal
• Gate command: Present
• Feedback response: Missing
• Power output: Disabled

Engineers analyzed:

• Connector seating
• Signal cable condition
• Board installation position

The investigation found:

• One communication connector had poor contact after vibration during operation

Technical impact:

The unstable connection caused:

• Incorrect fault feedback
• Power stage protection activation
• Drive output shutdown

The NGDR-03 board was not damaged.

ABB NGDR-03 58908193F Root Cause Analysis and Recovery

The final root cause was an intermittent connector connection problem.

Original condition:

• Drive operated normally
• Gate signals transferred correctly

Failure condition:

• Mechanical vibration affected connector contact
• Feedback loop became unstable
• Protection circuit blocked switching operation

Engineering conclusion:

The fault was caused by installation reliability issues rather than electronic component failure.

ABB NGDR-03 58908193F Troubleshooting Repair and System Recovery

Corrective actions:

Connector and Wiring Repair

Performed:

• Removed and reinstalled connectors
• Checked terminal pressure
• Verified signal continuity

Drive Functional Testing

Tested:

• Gate signal response
• Power output
• Motor operation
• Protection functions

Final results:

Before repair:

• Drive remained unavailable
• Production equipment stopped

After repair:

• Switching control restored
• Motor started normally
• Machine operation recovered

ABB NGDR-03 58908193F Common Fault Patterns and Diagnostic Methods

Gate Pulse Missing Fault

Symptoms:

• Drive enabled but no motor output

Diagnosis:

• Check gate command signal
• Verify control board communication
• Inspect interface connection

Power Stage Protection Fault

Symptoms:

• Immediate trip after startup

Diagnosis:

• Check feedback signals
• Inspect semiconductor module
• Verify gate drive output

Intermittent Drive Fault

Symptoms:

• Random shutdowns
• Fault disappears after reset

Diagnosis:

• Inspect connectors
• Check vibration effects
• Verify signal stability

ABB NGDR-03 58908193F Long-Term Maintenance Strategy

For reliable operation:

• Inspect connectors during maintenance
• Keep drive cabinet clean
• Monitor fault history
• Check cooling conditions
• Maintain wiring records

A practical engineering rule:

“When troubleshooting an ABB NGDR-03 58908193F gate drive card fault, verify the complete gate control and feedback circuit before replacing the board.”

Recommended troubleshooting sequence:

Fault history review → Power supply check → Gate signal measurement → Connector inspection → Feedback verification → Final drive test.
