Brand:Bently Nevada PLC Item No.:3500/53-02-00 Product Origin:USA Product Dimensions:241.3 x 24.4 x 99.1 mm Product Weight:0.45 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

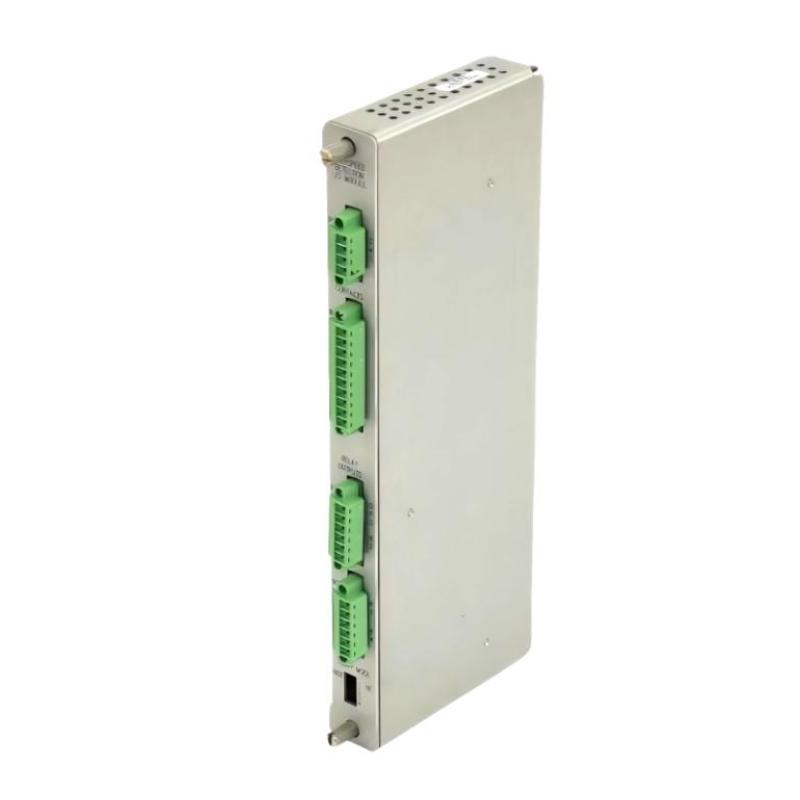

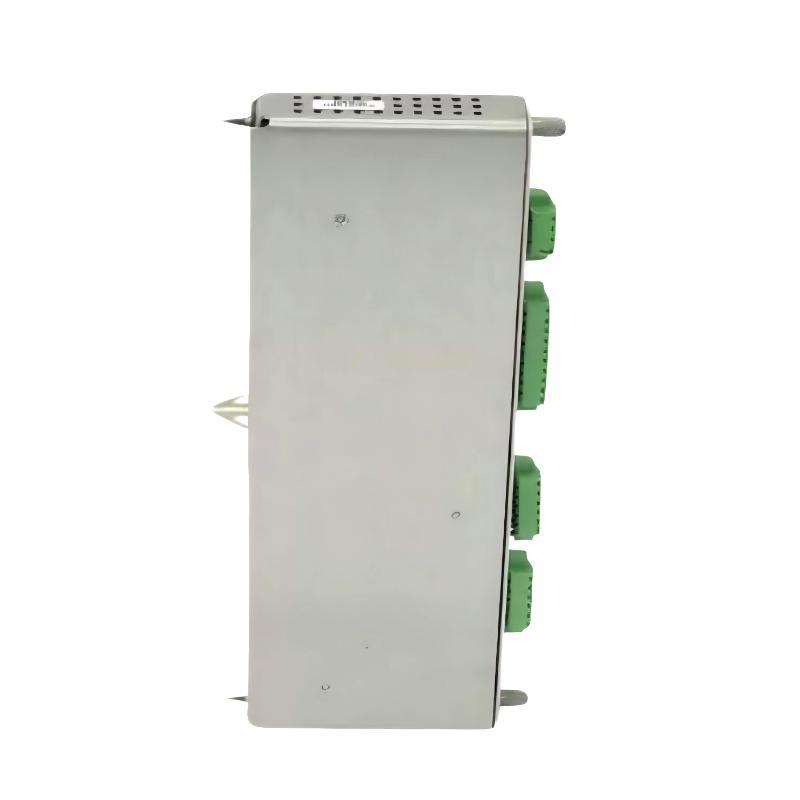

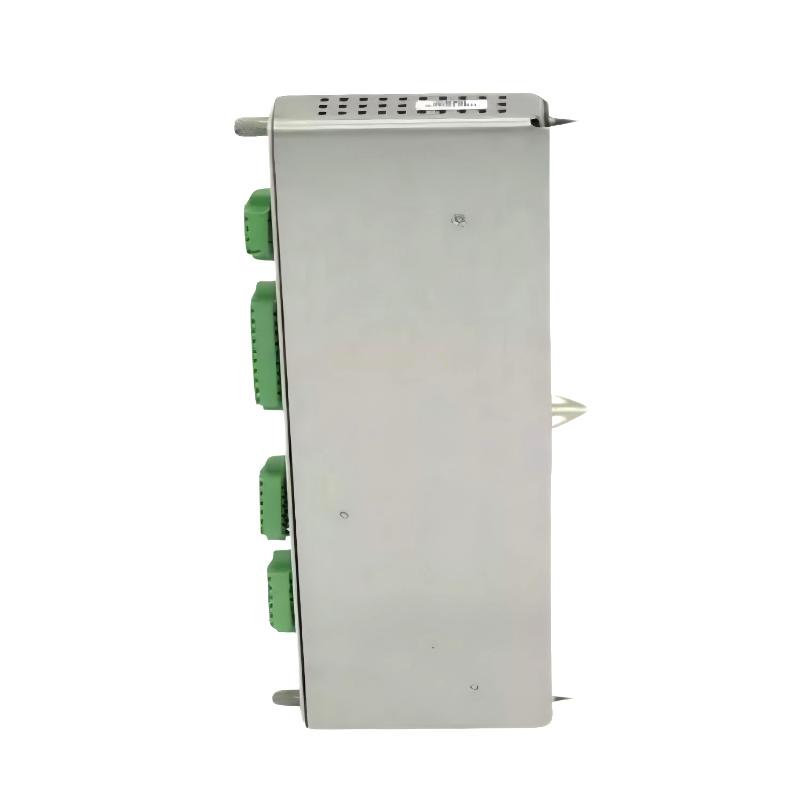

The Bently Nevada 3500/53‑02‑00 133396‑01 is a high‑performance overspeed detection module within the trusted 3500 Series platform. Engineered for operators and maintenance teams, it ensures rapid and reliable detection of dangerous overspeed conditions. Its compact design and seamless rack integration make it an essential component for machinery protection, reducing downtime and enhancing safety in demanding industrial environments.
Technical Specifications
Specification
Detail
Part Number
133396‑01
Series
3500/53‑02‑00
Function
Overspeed Detection / I/O Module
Inputs
Proximity probes / Tachometers / Magnetic pickups
Outputs
Alarm and trip signaling
Configuration
3500 Rack Configuration software
Dimensions
241.3 x 24.4 x 99.1 mm
Weight
0.45 kg
Operating Voltage
18–30 V DC (typical rack supply)
Operating Temp.
Industrial range (standard)
Recommended Related Models
Bently Nevada 3500/53‑02‑00 133397‑01 Overspeed Module with Internal Barriers
Bently Nevada 3500/22M 288055‑01 Transient Data Interface
Bently Nevada 3500/60 133819‑01 Temperature Monitor
Bently Nevada 3500/50M 136703‑01 Tachometer Module with Internal Barriers
Applications
The Bently Nevada 3500/53‑02‑00 133396‑01 Overspeed Detection I/O Module is designed for high‑reliability rotational speed monitoring and overspeed protection in critical industrial machinery. It integrates with 3500 Series proximity probes, tachometers, or magnetic pickups to provide accurate overspeed detection, alarm generation, and trip signaling. Common applications include gas and steam turbines, high-speed compressors, generators, and other rotating equipment where overspeed conditions could pose safety or operational risks.
Advantages
Dedicated Overspeed Detection: Provides precise and fast detection for high-speed machinery protection.
I/O Flexibility: Configurable input/output channels to interface with alarms, shutdown systems, and monitoring software.
Seamless Integration: Fits standard 3500 Series racks and communicates directly with other 3500 modules.
Modular Design: Easy to replace or upgrade without impacting the rest of the rack.
Compact and Lightweight: Small form factor and reduced weight for simplified installation in dense racks.
Technical FAQs
What is the primary purpose of this module?
To detect overspeed conditions and provide alarm/trip outputs for machinery protection.
Which machinery can it monitor?
Gas turbines, steam turbines, compressors, and other high-speed rotating equipment.
How does it interface with sensors?
Works with proximity probes, tachometers, and magnetic pickups from the 3500 Series.
Can it trigger shutdown systems?
Yes, it provides alarm and trip outputs compatible with standard safety protocols.
How is it powered?
Powered from the 3500 Series rack backplane.
Is the module configurable?
Yes, configuration is done via 3500 Rack Configuration software.
What type of output signals does it provide?
Alarm signaling and overspeed trip outputs.
Can it operate in harsh industrial conditions?
Yes, designed for industrial temperature and vibration ranges.
How many channels are available?
Typically dual or configurable channels for redundant monitoring.
What is the module’s maintenance requirement?
Minimal; routine inspection and software configuration checks are recommended.
