Introduction

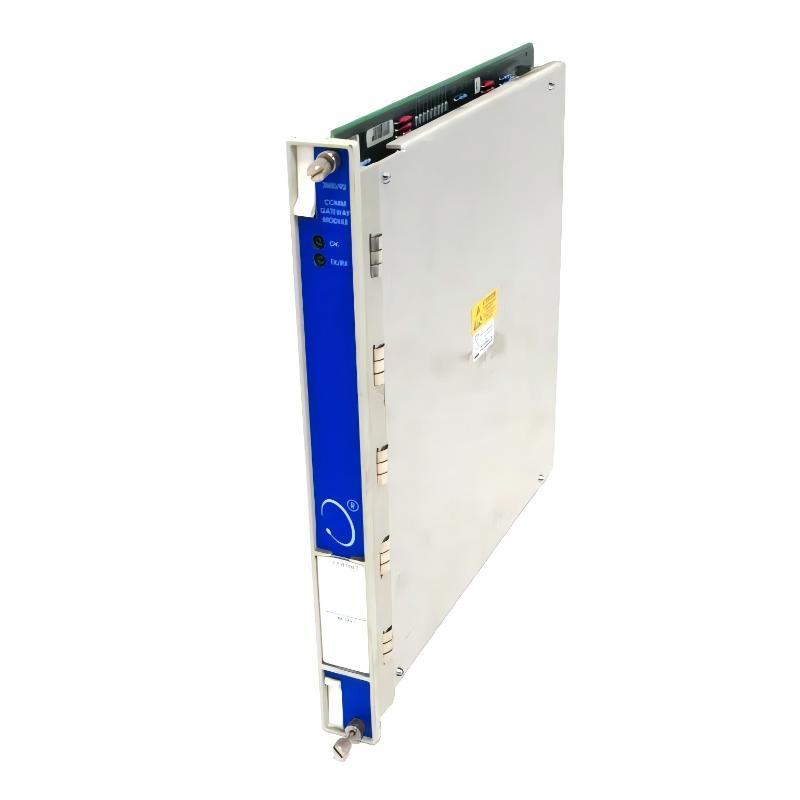

The Bently Nevada 3500/92 136180‑01 + 125736‑01 Communication Gateway + I/O Module provides a comprehensive solution for data integration, remote monitoring, and system control. Its combination of communication gateway and I/O functionality ensures real-time data flow, rapid alarm response, and flexible monitoring, making it ideal for critical industrial environments. The rugged, modular design allows operators to easily expand their 3500 Series systems with minimal downtime.

Technical Specifications

Specification	Detail
Part Numbers	136180‑01 + 125736‑01
Series	3500/92
Function	Communication Gateway + I/O Module
Inputs/Outputs	Multiple configurable points for alarms, trips, and monitoring
Configuration	3500 Rack Configuration software
Dimensions	241 x 24.4 x 242 mm
Weight	0.82 kg
Operating Voltage	18–30 V DC (typical rack supply)
Operating Temp.	Industrial range (standard)

Recommended Related Models

Bently Nevada 3500/62 136499‑01 I/O Module with External Terminal
Bently Nevada 3500/50M 288062‑02 Tachometer Module
Bently Nevada 3500/53‑02‑00 133396‑01 Overspeed Detection Module

Popular Related Models

Bently Nevada 3500/61 163179‑02 Temperature Monitor + I/O Module
Bently Nevada 3500/40M 176449‑01 Proximitor Monitor
Bently Nevada 3500/22M 288055‑01 Transient Data Interface

Applications

The Bently Nevada 3500/92 136180‑01 + 125736‑01 module combines a communication gateway with an I/O interface for advanced machinery monitoring and system integration. It enables high-speed data transfer between 3500 Series modules and plant control systems while providing flexible input/output capabilities for alarms, trips, and monitoring points. This module is widely used in power plants, petrochemical facilities, and industrial plants where centralized monitoring, remote access, and reliable alarm management are essential.

Advantages

Integrated Communication and I/O: Combines data gateway functionality with configurable I/O points.
Remote Monitoring Capabilities: Facilitates real-time data exchange with control systems and diagnostics platforms.
Flexible Inputs and Outputs: Supports multiple sensors, alarms, and trip signaling points.
Seamless 3500 Series Integration: Easily fits into standard racks for direct communication with other modules.
Rugged Industrial Design: Built to operate reliably in high vibration and harsh environmental conditions.

Technical FAQs

What is the primary function of this module?
To provide communication between 3500 Series modules and external systems, while offering I/O for alarms and trips.
Which systems can it interface with?
Plant control systems, SCADA, and monitoring software platforms.
Does it provide alarm and trip outputs?
Yes, multiple configurable outputs are available for system integration.
Is it configurable without hardware changes?
Yes, configuration is performed via 3500 Rack Configuration software.
What is the operating voltage?
18–30 V DC supplied from the 3500 Series rack.
Can it operate in harsh industrial environments?
Yes, designed for industrial temperature and vibration ranges.
How many I/O points are supported?
Multiple configurable inputs and outputs for alarms and monitoring points.
Can it support remote monitoring and diagnostics?
Yes, the communication gateway enables data exchange for centralized monitoring and analytics.
What is the physical size and weight?
Dimensions: 241 x 24.4 x 242 mm, Weight: 0.82 kg.
Does it integrate with other 3500 Series modules?
Yes, seamless communication via the 3500 rack backplane.
