Introduction

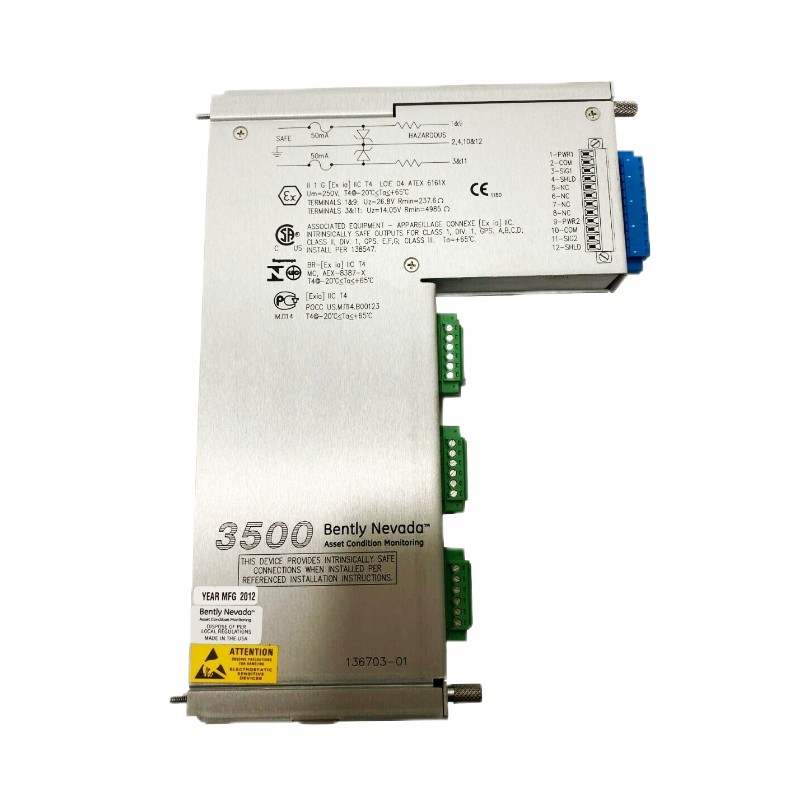

The Bently Nevada 3500/50 136703-01 Discrete Internally Isolated I/O Module delivers dependable discrete signal interfacing for high-integrity machinery monitoring systems. By incorporating internal isolation, it enhances reliability and protects critical monitoring electronics from electrical disturbances. As part of the proven 3500 platform, this module supports accurate speed monitoring, improves system resilience, and contributes to safer and more efficient plant operations.

Technical Specifications

Specification	Detail
Model Number	3500/50 136703-01
Module Type	Discrete Internally Isolated I/O Module
Signal Type	Discrete, isolated
System Compatibility	Bently Nevada 3500 system
Mounting Method	3500 rack-mounted
Dimensions	241.3 x 24.4 x 163.1 mm
Weight	0.46 kg
Operating Duty	Continuous industrial operation

Recommended Related Models

Bently Nevada 3500/50 Tachometer Monitor
Bently Nevada 3500/22M Transient Data Interface
Bently Nevada 3500/53 Overspeed Detection Module

Popular Related Models

Bently Nevada 3500/40M Preamplifier Monitor
Bently Nevada 3500/60 Temperature Monitor
Bently Nevada 3500/62 Process Variable Monitor

Applications

The Bently Nevada 3500/50 136703-01 Discrete Internally Isolated I/O Module is designed to provide reliable discrete signal interfacing within the 3500 machinery protection system. It is commonly used in tachometer and speed-related monitoring architectures where clean, isolated discrete inputs are required. Typical applications include steam and gas turbines, compressors, pumps, motors, and generators across power generation, oil & gas, petrochemical, and heavy industrial installations.

Advantages

Internal Signal Isolation: Enhances system safety and protects monitoring electronics from electrical interference.
Discrete Signal Handling: Optimized for speed, event, and status-related inputs.
Seamless 3500 Integration: Designed specifically for compatibility with Bently Nevada 3500 racks.
Stable Long-Term Performance: Maintains signal integrity in continuous-duty environments.
Industrial-Grade Construction: Suitable for harsh operating conditions and mission-critical machinery.

Technical FAQs

What is the primary purpose of the 3500/50 136703-01 module?
It provides discrete, internally isolated I/O for tachometer and related monitoring functions.
Why is internal isolation important?
It protects the system from ground loops, electrical noise, and transient faults.
Which monitoring setups typically use this module?
Speed, phase reference, and event-based monitoring configurations.
Is this module compatible with the 3500/50 monitor?
Yes, it is designed to work seamlessly with the 3500/50 Tachometer Monitor.
What machinery types benefit from this module?
Turbines, compressors, pumps, motors, and generators.
Does it support continuous operation?
Yes, it is engineered for 24/7 industrial monitoring environments.
What are the physical dimensions and weight?
Dimensions: 241.3 x 24.4 x 163.1 mm, Weight: 0.46 kg.
Is it suitable for electrically noisy environments?
Yes, internal isolation improves performance in harsh electrical conditions.
How is it installed?
Installed directly into a Bently Nevada 3500 rack as an I/O module.
What maintenance does it require?
Minimal maintenance, typically limited to routine system checks.
