Introduction

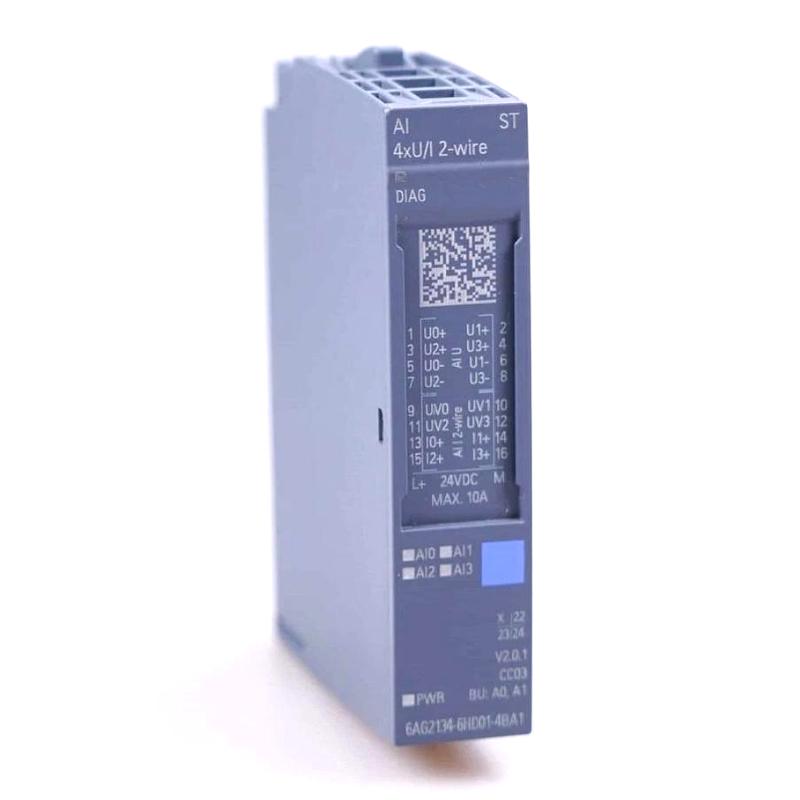

The Siemens 6AG2134-6HD01-4BA1 Analog Input Module is designed for industrial automation applications that require analog signals to be acquired by a PLC-based control system. Proper installation and configuration are essential for reliable signal acquisition, accurate process measurements, and consistent communication between field instruments and the controller.

This installation guide covers hardware preparation, field wiring, engineering configuration, signal verification, and commissioning procedures. Before starting, confirm the exact order number and consult the applicable Siemens documentation for the module's supported input signals, electrical ratings, channel configuration, and compatibility requirements.

1. Verify Hardware and Signal Compatibility

Before installing the Siemens 6AG2134-6HD01-4BA1, compare the product label with the approved bill of materials and hardware configuration. Analog input modules with similar model numbers may support different signal ranges, channel arrangements, or diagnostic functions.

Check the following items:

• Hardware compatibility: Confirm the supported controller, station, mounting position, and associated hardware.

• Input signal type: Verify whether the connected instruments provide voltage, current, or another supported analog signal.

• Measurement range: Match the configured input range to the transmitter's output specification.

• Wiring arrangement: Check terminal assignments, reference connections, and shielding requirements.

• Engineering software: Confirm that the correct hardware catalog entry and required firmware support are available.

• Field instrument specifications: Record each sensor's measuring range, output range, and engineering units.

For a replacement project, save the original hardware configuration and document the existing channel assignments before removing the installed module.

2. Install and Wire the Analog Input Module

Before handling the module, isolate the relevant power supplies and follow the facility's lockout/tagout procedures. Verify that the equipment is de-energized before connecting or disconnecting field wiring.

Installation procedure

1. Identify the correct installation position from the approved hardware layout.

2. Inspect the module housing, mounting interface, and connector contacts for damage.

3. Mount the module according to the specified installation procedure.

4. Connect the field instruments using the verified terminal diagram.

5. Confirm that every instrument is assigned to the intended input channel.

6. Check signal polarity and reference connections where applicable.

7. Route analog signal cables away from motor cables, contactors, and high-current conductors where practical.

8. Apply the specified grounding and shielding arrangement.

9. Inspect all connections against the electrical drawings before restoring power.

For current-loop instruments, verify whether the transmitter is externally powered or requires another documented supply arrangement. Incorrect loop wiring can produce a missing signal, inaccurate readings, or unexpected electrical behavior.

Do not assume that terminal assignments or wiring arrangements are identical to those of another Siemens analog input module.

3. Configure the Siemens 6AG2134-6HD01-4BA1 in the PLC Project

After physical installation, configure the module in the applicable Siemens engineering environment.

Select the correct hardware catalog entry and confirm that the configured mounting position matches the actual installation. Set the input parameters according to the connected instruments and the signal types supported by the module.

Review these configuration items:

• Input signal type and measurement range.

• Channel activation and parameter assignments.

• Input addresses and PLC variable mapping.

• Available diagnostic settings.

• Firmware and engineering software compatibility.

• Engineering-unit conversion and scaling logic.

For example, a pressure transmitter with a 4–20 mA output may represent a process range of 0–16 bar. If this signal type and range are supported and correctly configured, the PLC program must convert the acquired value into the intended pressure units using the appropriate raw-value representation.

Verify the configured scaling endpoints rather than copying conversion constants from a different module or project. Incorrect scaling can cause a PLC to display plausible but inaccurate measurements.

Before downloading configuration changes to a running system, follow the site's change-control procedure and assess their effect on existing control logic.

4. Commissioning and Signal Verification

Commissioning should establish that the module recognizes the configured hardware, receives the expected field signal, and provides a correctly scaled value to the PLC program.

For a verified 4–20 mA application, for example, a signal near 12 mA represents approximately 50% of the configured measurement span when the scaling is linear. For a 0–16 bar transmitter, that corresponds to approximately 8 bar. This calculation is valid only when the transmitter's configured range and the PLC scaling use those endpoints.

Use a calibrated signal source or an approved process reference when checking accuracy. Any injected test signal must be applied using a method suitable for the module's documented input circuit.

5. Field Case: Incorrect Engineering Values After Module Replacement

Following a scheduled maintenance shutdown, a replacement analog input module is installed in a process monitoring cabinet. The PLC receives a changing input value, but the displayed flow measurement remains consistently higher than the value reported by a calibrated reference instrument.

The engineer first verifies the field transmitter's output and checks that the electrical signal reaches the intended input channel. The next step is to compare the channel configuration and scaling logic with the approved project documentation.

The investigation reveals that the hardware installation is correct, but the PLC conversion parameters do not match the transmitter's configured measurement range. After correcting the scaling under the approved change procedure, the engineer checks several known input points and confirms that the displayed values correspond to the expected process measurements.

This case demonstrates why analog input commissioning must include both electrical signal verification and engineering-unit validation.

6. Installation Acceptance Checklist

Before returning the system to service, confirm that:

• The module order number and hardware compatibility have been verified.

• The module is mounted correctly and securely.

• Field instruments use supported input signal types.

• Terminal assignments, polarity, and reference connections are correct.

• Shielding and grounding follow the approved installation design.

• Channel parameters and input addresses match the project.

• Engineering-unit scaling has been verified.

• Input values have been checked against an appropriate reference.

• Diagnostic records contain no unresolved installation-related faults.

• Final configuration and commissioning results have been documented.

A complete commissioning record provides a reliable baseline for future maintenance and helps technicians distinguish hardware faults from signal wiring or configuration problems.
