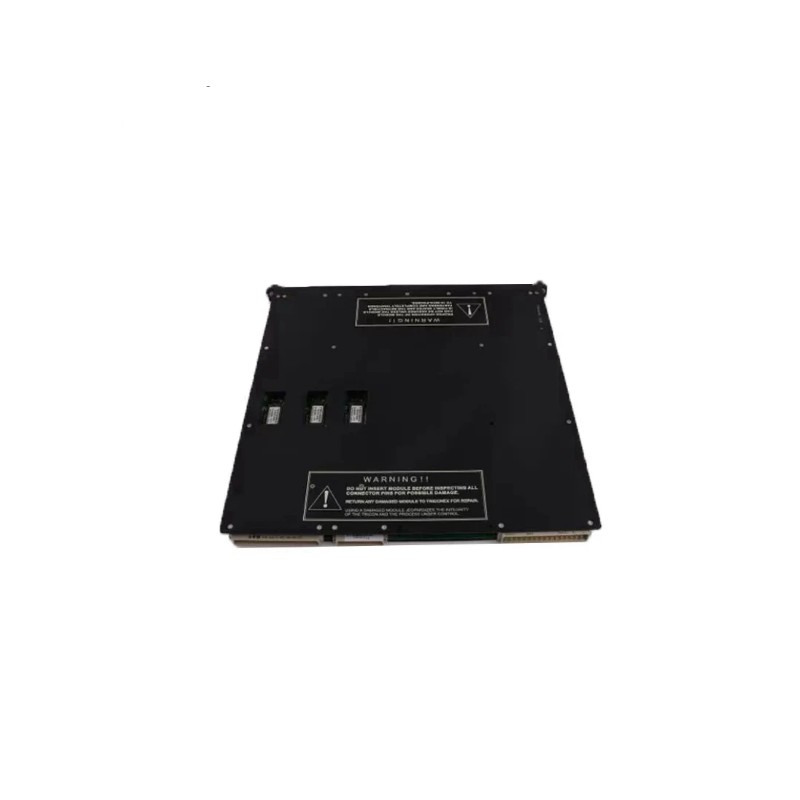

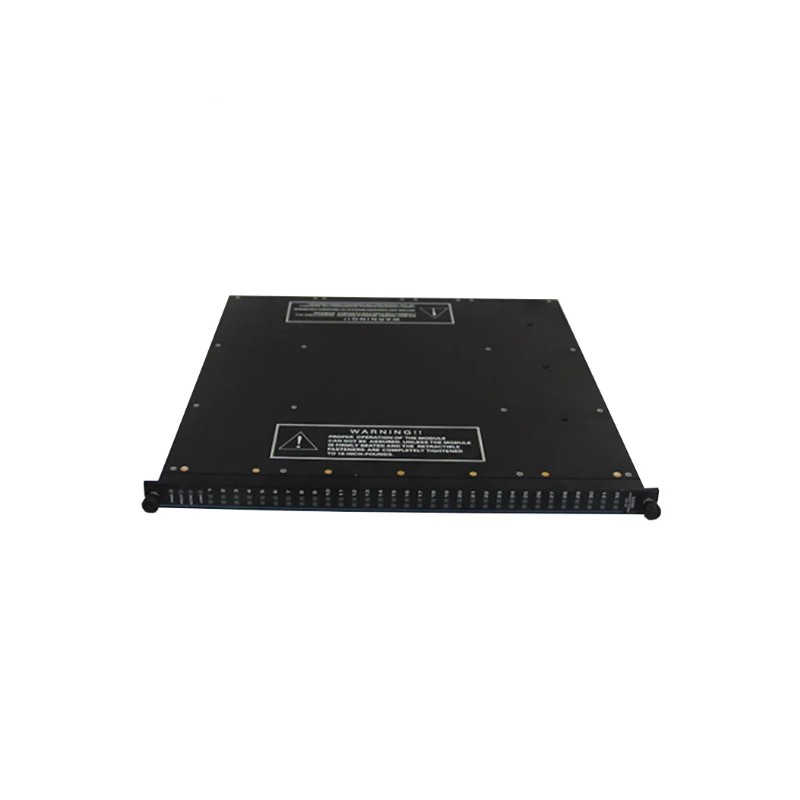

Triconex 3607E-3 Triconex 3607E-1 Triconex 3607E-2 3607E

The Triconex 3607E Digital Output Module is a high‑integrity safety I/O component designed for use in Triple Modular Redundancy (TMR) Safety Instrumented Systems (SIS). It delivers 16 isolated, non‑commoned digital outputs capable of switching higher‑voltage DC field devices with precision and reliability. This module’s rugged construction, fault‑tolerant architecture, and continuous diagnostics make it ideal for safety‑critical installations where dependable actuation and ongoing system health feedback are required.

The 3607E is engineered to provide dependable control of solenoid valves, indicators, relays, and similar actuators in demanding environments such as process plants, power generation facilities, and heavy industrial automation systems. Its design supports hot‑swap capability and seamless integration into Triconex I/O racks, minimizing maintenance impact and enhancing uptime.

Technical Specifications

Parameter	Specification
Product Type	Digital Output (DO) Module
Model	3607E
System Compatibility	Triconex Safety Instrumented Systems (TMR)
Output Points	16 non‑commoned digital outputs
Output Voltage Nominal	48 V DC
Operating Voltage Range	44 – 80 V DC
Maximum Current per Output	1 A continuous
Surge Current	5 A (10 ms)
Output Voltage Drop	< 3 V typical
Isolation	1,500 V DC point‑to‑backplane
Fuses (on ETP)*	1.25 A fast acting per output
Diagnostics	PASS/FAULT/ACTIVE, load/fuse alarms
Mounting	Rack‑mounted in Triconex chassis
Hot‑Swap Support	Yes
Operating Temperature	–40 °C to +70 °C
Storage Temperature	–40 °C to +85 °C
Dimensions (H × W × D)	Approx. 160 × 160 × 120 mm (module form)
Weight	Approx. 0.9 – 1.8 kg

*Fuses are typically housed on the external termination panel (ETP).

Recommended Related Models

Triconex 3008 Main Processor Module – Core logic controller
Triconex 3703E Digital Input Module – Discrete input acquisition
Triconex 3721 Analog Input Module – Analog signal acquisition
Triconex 3805E Analog Output Module – Analog actuation outputs
Triconex 3624/3625 Output Modules – Alternate supervised output variants

Popular Triconex Modules

Triconex 3700A Safety Controller
Triconex 4352B Communication Module
Triconex 4354 Networking Interface
Triconex 4211 Remote Extender Module
Triconex 9563 Series Termination Panels

Product Applications

The 3607E module is used wherever high‑integrity discrete control and supervision of field actuators is essential:

Emergency Shutdown (ESD) Systems – Controls safety trip outputs to shutdown valves and solenoids
Fire & Gas (F&G) Safety Logic – Drives alarms, sirens, and protective devices
Power Generation Safety Controls – Actuates turbine trip circuits and protective interlocks
Petrochemical & Chemical Plants – Provides signal outputs for safety interlocks and hazard mitigation
Industrial Automation Safety – Reliable actuation of motor starters and indicators in high‑risk environments

Its digital outputs are optimized for devices operating at 48 V DC, offering a robust solution for systems where 24 V outputs may not suffice.

Product Advantages

Triple Modular Redundancy (TMR) for Fault Tolerance
Ensures that output actions remain valid and safe even if one internal channel fails.
Isolated, Non‑Commoned Outputs
Individual electrical isolation reduces interference and enhances safety diagnostics.
Comprehensive Diagnostics
Per‑point status LEDs and module fault reporting assist in rapid maintenance and planning.
Hot‑Swap Capability
Allows module replacement without system shutdown in supported configurations, preserving uptime.
Industrial‑Grade Design
Operates reliably across wide temperature ranges and challenging field conditions.
Modular Integration
Plug‑and‑play compatibility with Triconex chassis simplifies system expansion and upgrades.

Technical FAQs

What type of module is the Triconex 3607E?
A digital output module designed for safety instrumented systems.
How many output channels does it have?
16 isolated, non‑commoned digital outputs.
What is the nominal operating voltage?
48 V DC.
Can it handle higher‑voltage DC devices?
Yes, designed for field devices requiring up to 80 V DC.
Does the module support hot swapping?
Yes, in compatible Triconex configurations.
How are outputs protected?
Uses individual fuses on the external termination panel for overcurrent protection.
What diagnostics are available?
PASS/FAULT/ACTIVE and load/fuse alarms on each output.
What industries benefit from this module?
Oil & gas, power generation, chemical processing, and industrial automation.
Does it support SIL safety applications?
Yes, designed for high‑integrity safety systems within a TMR architecture.
What is its typical weight?
Around 0.9 – 1.8 kg depending on configuration.
