Siemens 6ES7590-5BA00-0AA0 Shielding Terminal Troubleshooting for PLC Signal Interference Problems

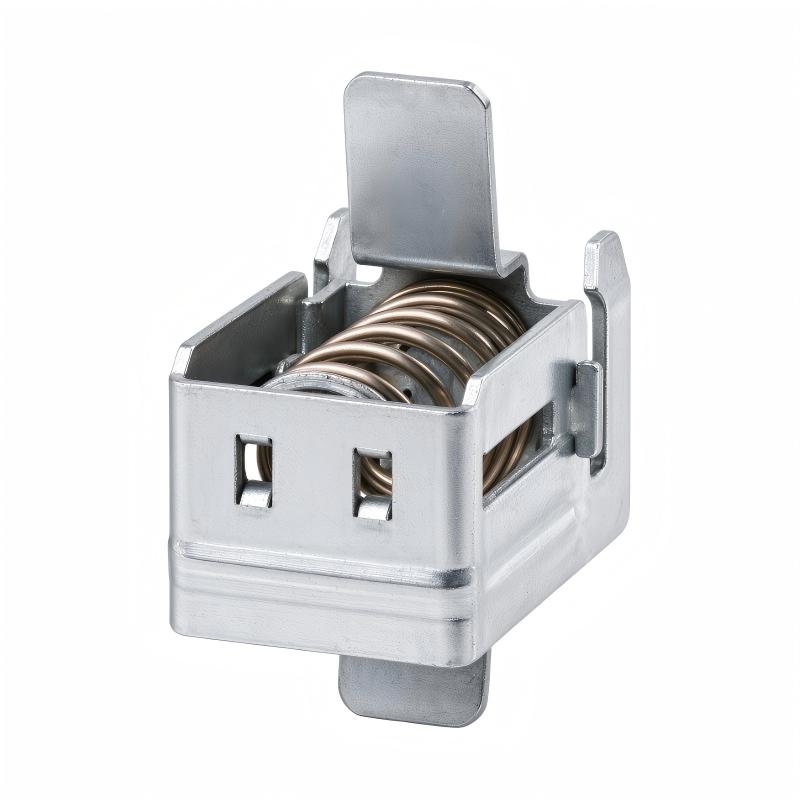

Siemens 6ES7590-5BA00-0AA0 Shielding Terminal troubleshooting usually involves identifying EMC-related problems rather than repairing an electronic component. Because the shielding terminal is a passive connection accessory, faults are commonly caused by incorrect shield contact, poor grounding, cable routing problems, or improper installation.

Typical symptoms include:

• Analog signal instability
• Communication interruptions
• Random PLC diagnostic alarms
• Encoder signal errors
• Intermittent sensor readings
• Increased noise during machine operation

A correct Fault Diagnosis process follows the interference path:

Noise Source → Cable → Shield Connection → PLC System → Signal Behavior

Siemens 6ES7590-5BA00-0AA0 Shielding Terminal Fault Symptoms Analysis

The first step is to identify the relationship between the fault and machine operation.

Important observations:

A signal problem that appears at the same time as contactor switching, inverter operation, or motor acceleration often indicates an EMC-related issue.

Siemens 6ES7590-5BA00-0AA0 Shield Connection Fault Diagnosis

The most common Siemens 6ES7590-5BA00-0AA0 fault is insufficient contact between the cable shield and shielding terminal.

Possible causes:

• Shield not exposed correctly
• Clamp installed on cable insulation
• Loose mechanical contact
• Shield damaged during preparation
• Incorrect cable type

A practical inspection sequence:

Check Signal Fault Timing
          ↓
Inspect Shield Connection
          ↓
Verify Mechanical Contact
          ↓
Measure Ground Continuity
          ↓
Monitor Signal Stability

The purpose is not only to confirm that a shield exists, but to verify that interference currents have a reliable path.

Siemens 6ES7590-5BA00-0AA0 Analog Signal Interference Case Study

A process control system using Siemens S7-1500 modules experienced unstable pressure readings.

Observed conditions:

• Sensor output: Stable
• PLC analog input: Fluctuating
• Wiring: Correct
• Software configuration: Correct

Signal measurement showed:

Before correction:

• Normal value: 5.00 bar
• Fluctuation: ±0.15 bar

Inspection found that the sensor cable shield was connected only at the field side and not properly terminated at the PLC cabinet.

After installing the Siemens 6ES7590-5BA00-0AA0 Shielding Terminal connection correctly:

• Signal variation reduced significantly
• Diagnostic alarms disappeared
• Process value became stable

The fault was caused by EMC coupling, not by the sensor or PLC module.

Siemens 6ES7590-5BA00-0AA0 Communication Fault Troubleshooting

Communication faults may appear unrelated to shielding problems because the PLC network itself may report errors.

During diagnosis, check:

• Communication cable routing
• Shield continuity
• Connector condition
• Grounding arrangement
• Nearby interference sources

A useful troubleshooting comparison:

Software Check

Verify:

• Network configuration
• Device parameters
• Diagnostic buffer information

Physical Check

Verify:

• Cable shield
• Shielding terminal contact
• Cable separation
• Ground connection

If software diagnostics are normal but communication faults occur only during machine switching events, investigate EMC conditions.

Siemens 6ES7590-5BA00-0AA0 Poor Shield Contact Repair Process

When a poor shield connection is identified, repair should focus on restoring proper mechanical and electrical contact.

Corrective actions may include:

• Repositioning cable shield
• Cleaning contact surfaces
• Tightening shield clamps
• Correcting cable routing
• Improving equipotential bonding

After repair, repeat the original operating condition.

For example:

If the fault occurred when a motor started, test the system during motor startup again.

A repair is only confirmed when the original disturbance condition no longer produces the fault.

Siemens 6ES7590-5BA00-0AA0 Grounding and EMC Fault Investigation

Grounding problems can create confusing symptoms because multiple systems may appear faulty.

During Fault Diagnosis, review:

• Cabinet grounding
• Protective earth connection
• Signal reference potential
• Shield termination points
• Ground loops

A common mistake is adding random grounding wires when a signal problem occurs. Additional connections can sometimes create unwanted ground loops.

The better approach is to understand the designed grounding concept and verify whether the installed system matches it.

Siemens 6ES7590-5BA00-0AA0 Shielding Terminal Installation Error Diagnosis

Incorrect installation after maintenance is a frequent cause of new EMC problems.

Examples:

• Replacement cable installed without shield connection
• Shield clamp forgotten during cabinet modification
• Cable moved closer to power wiring
• Shield connected with excessive wire length

A useful maintenance check is comparing:

Original installation → Current installation → Fault occurrence

If the problem started immediately after modification, the changed wiring should become the first diagnostic target.

Siemens 6ES7590-5BA00-0AA0 Fault Repair Verification

After correcting a shielding problem, perform verification under actual operating conditions.

Check:

• PLC diagnostic buffer
• Communication stability
• Analog signal trend
• Machine switching operation
• Cable mechanical condition

A proper verification record should include:

• Fault description
• Investigation process
• Root cause
• Corrective action
• Final test result

This information helps future maintenance teams avoid repeating the same troubleshooting process.

Siemens 6ES7590-5BA00-0AA0 Shielding Terminal Troubleshooting Best Practices

Effective Siemens 6ES7590-5BA00-0AA0 Troubleshooting requires understanding that a shielding terminal is part of the PLC EMC system, not an independent failure point.

The most reliable Fault Diagnosis approach combines:

• Signal analysis
• Cable inspection
• Shield verification
• Grounding review
• Machine-condition comparison

By following a structured troubleshooting process, engineers can resolve PLC interference problems faster, reduce unnecessary module replacement, and maintain stable Siemens S7-1500 automation systems.
